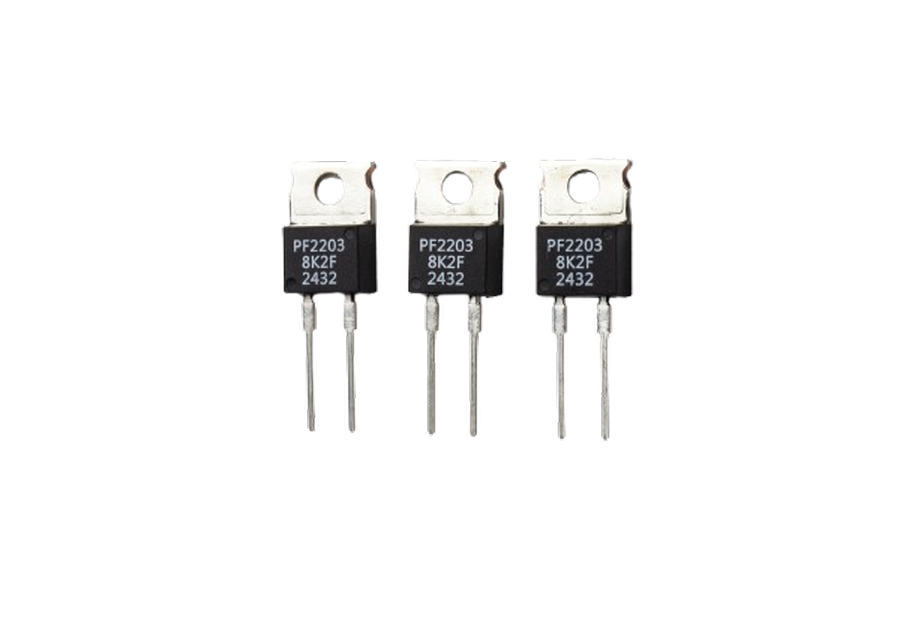

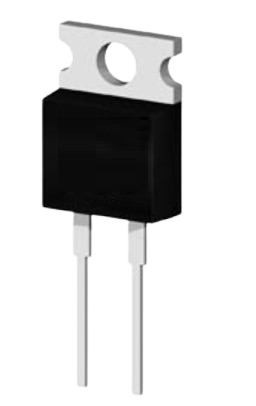

TO220 High Power Resistors

• 35 Watts at 25˚C Case Temperature On Heat Sink
• Single Screw Mounting To Heat Sink
• Moulded Case For Protection And Easy To Mount
• Non-Inductive Design
• Resistances From 0.01Ohm to 500KOhms
• Resistance Tolerances to ±1%
• TCR To ±50ppm/°C
• Load Stability to 1%
• Low Ohm Values For Current Sense Applications
• Exceptional Pulse Performance
• Solder Reflow Secure at 250°C / 30s
• Electrically Isolated From Back Plate
• RoHS Compliant
• Flammability UL94V-0
